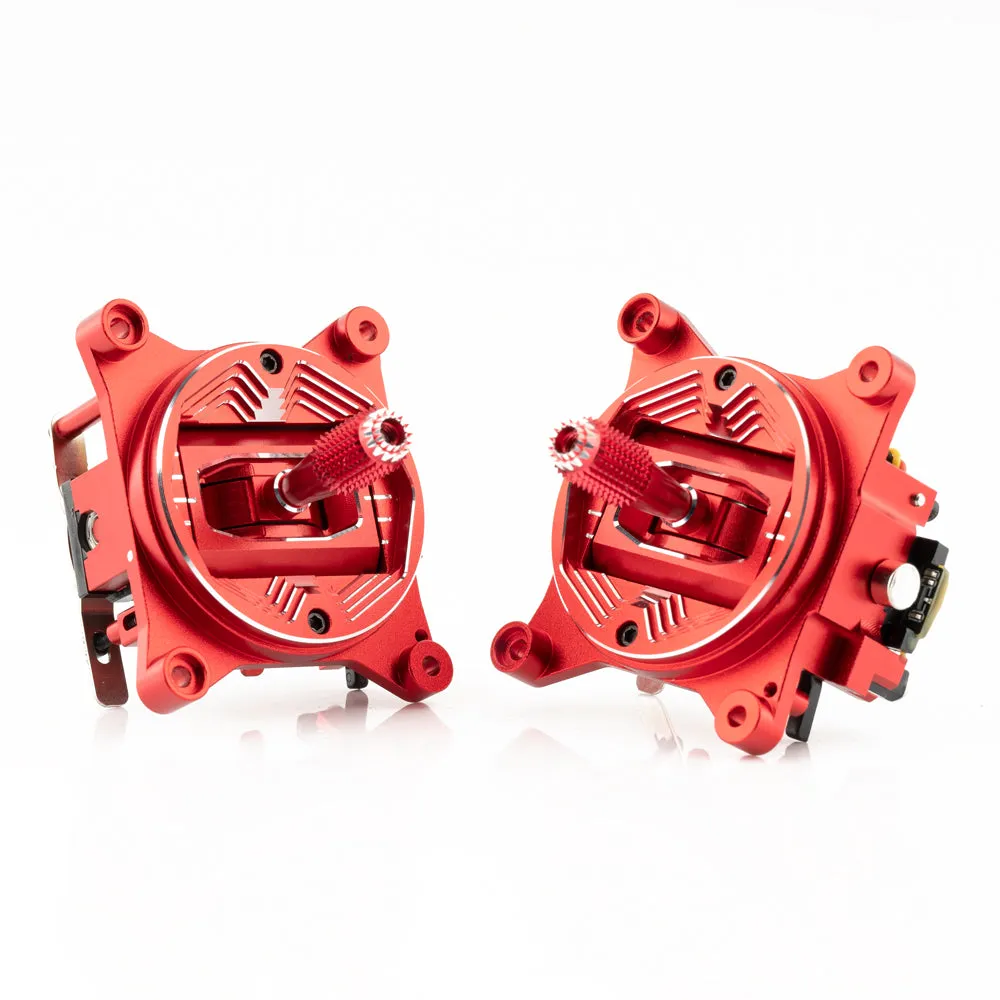

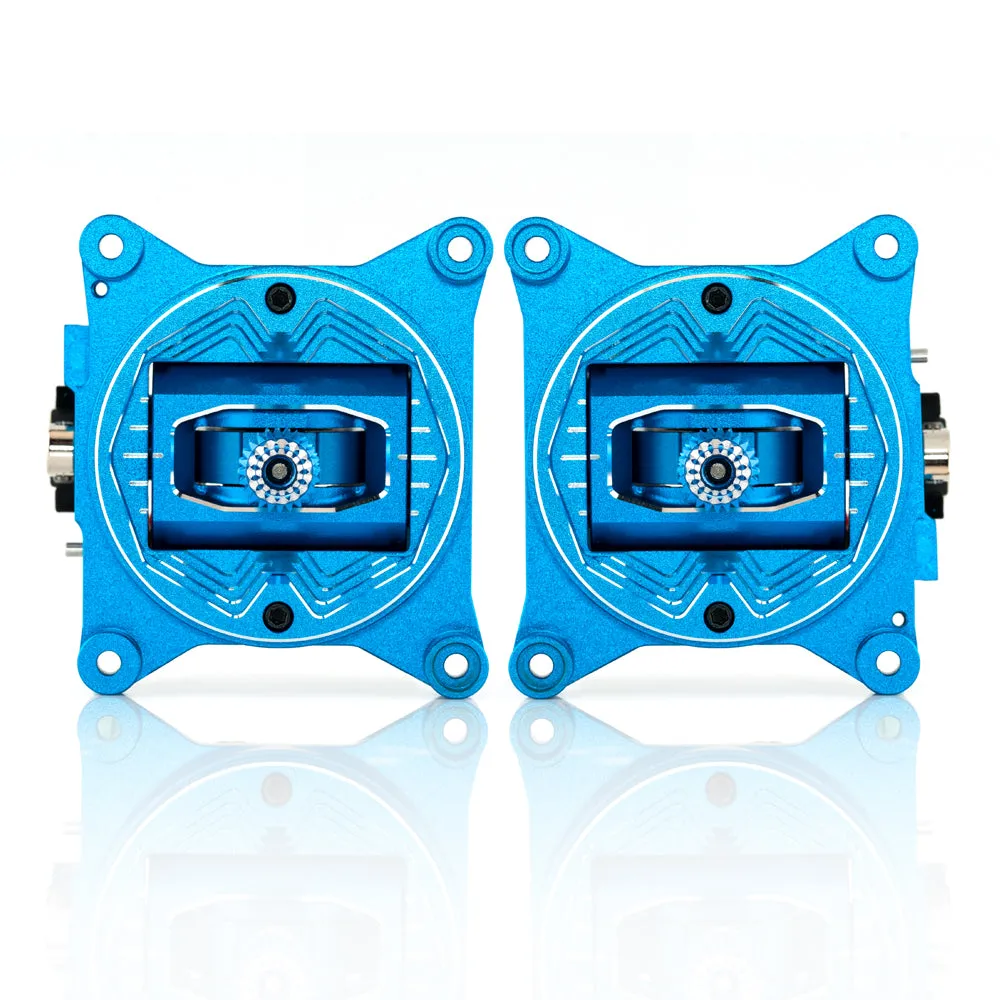

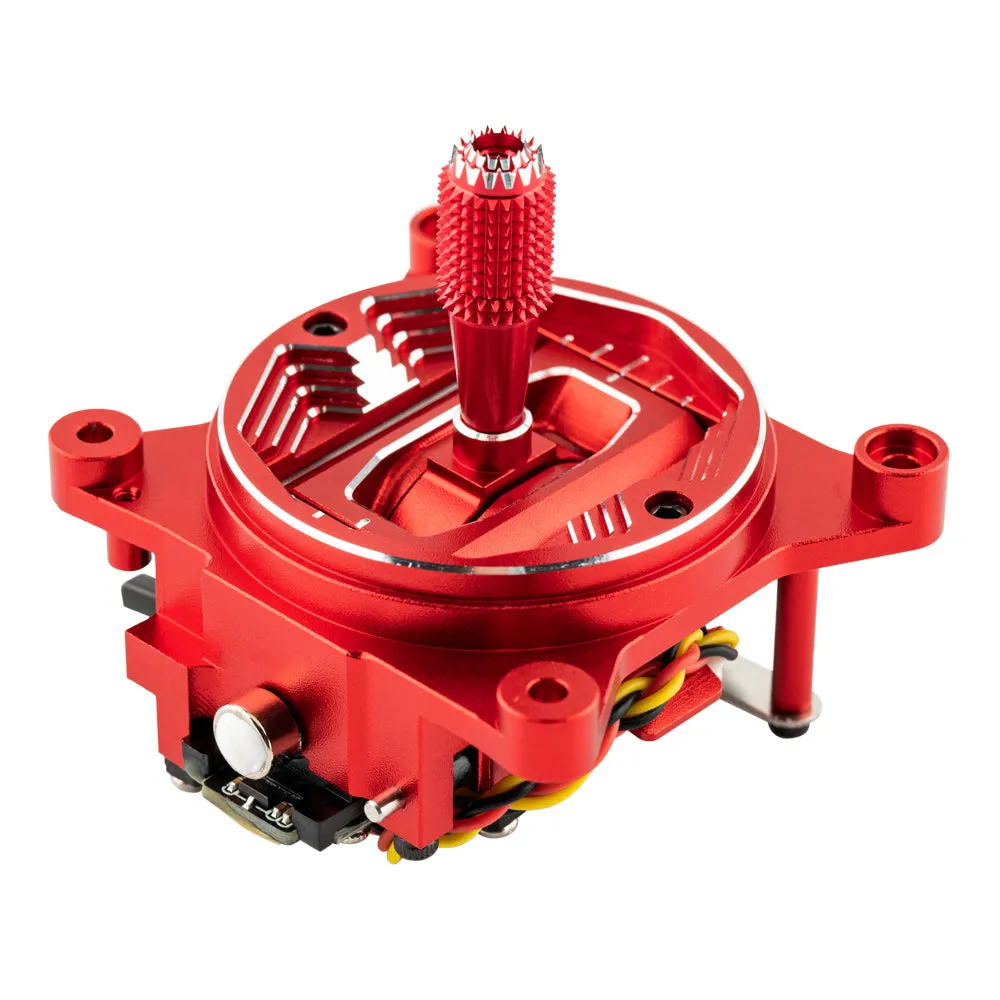

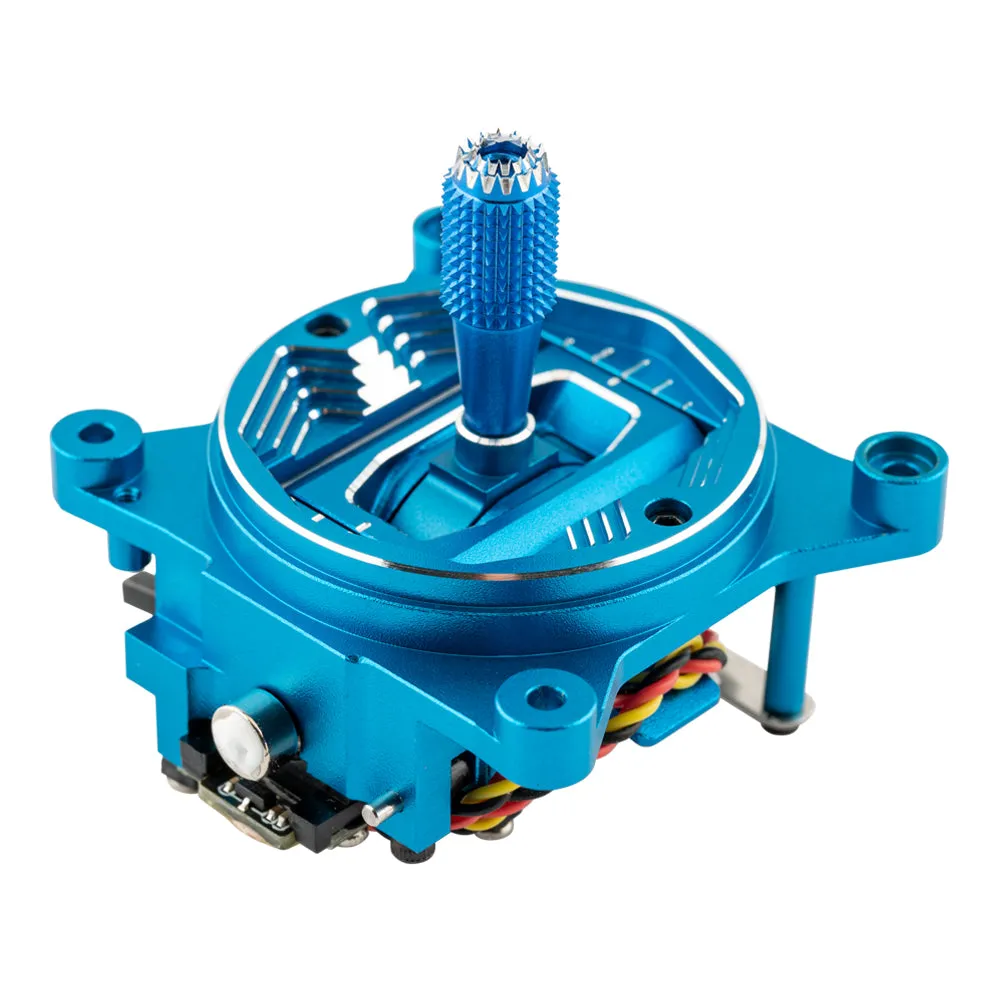

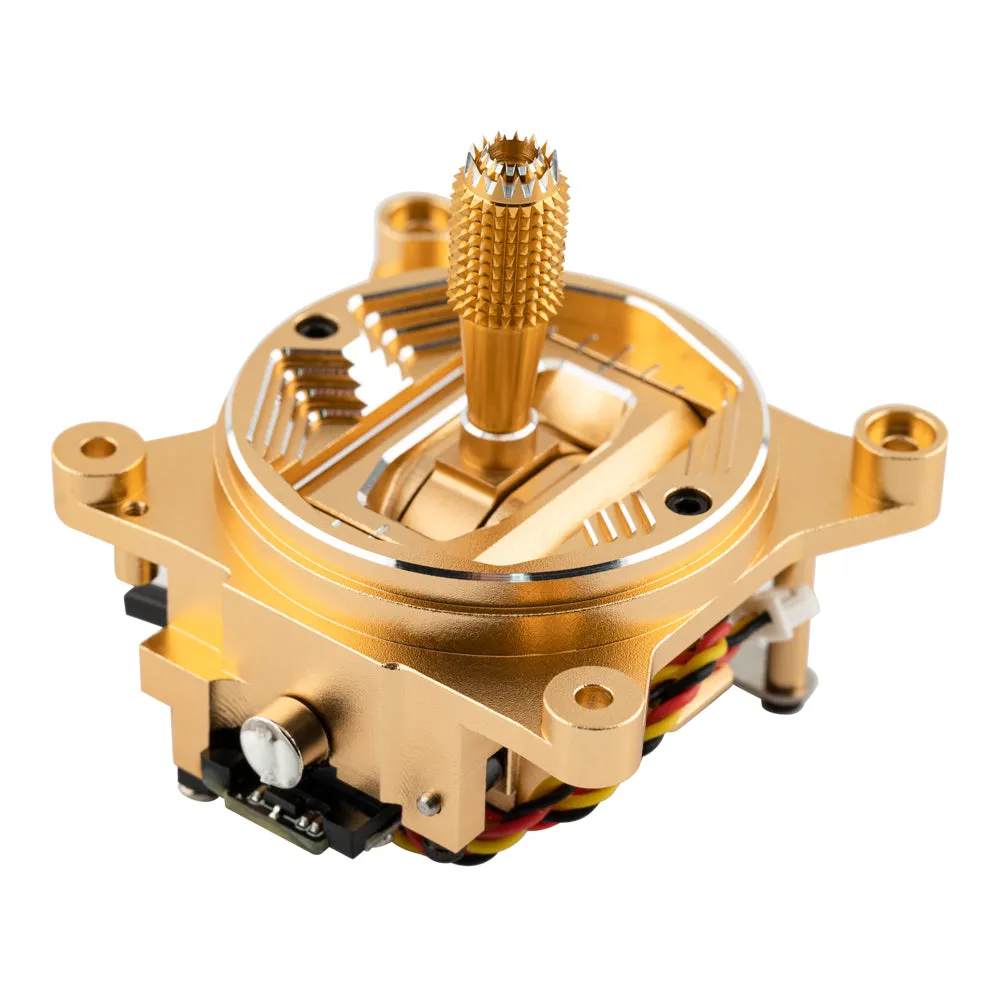

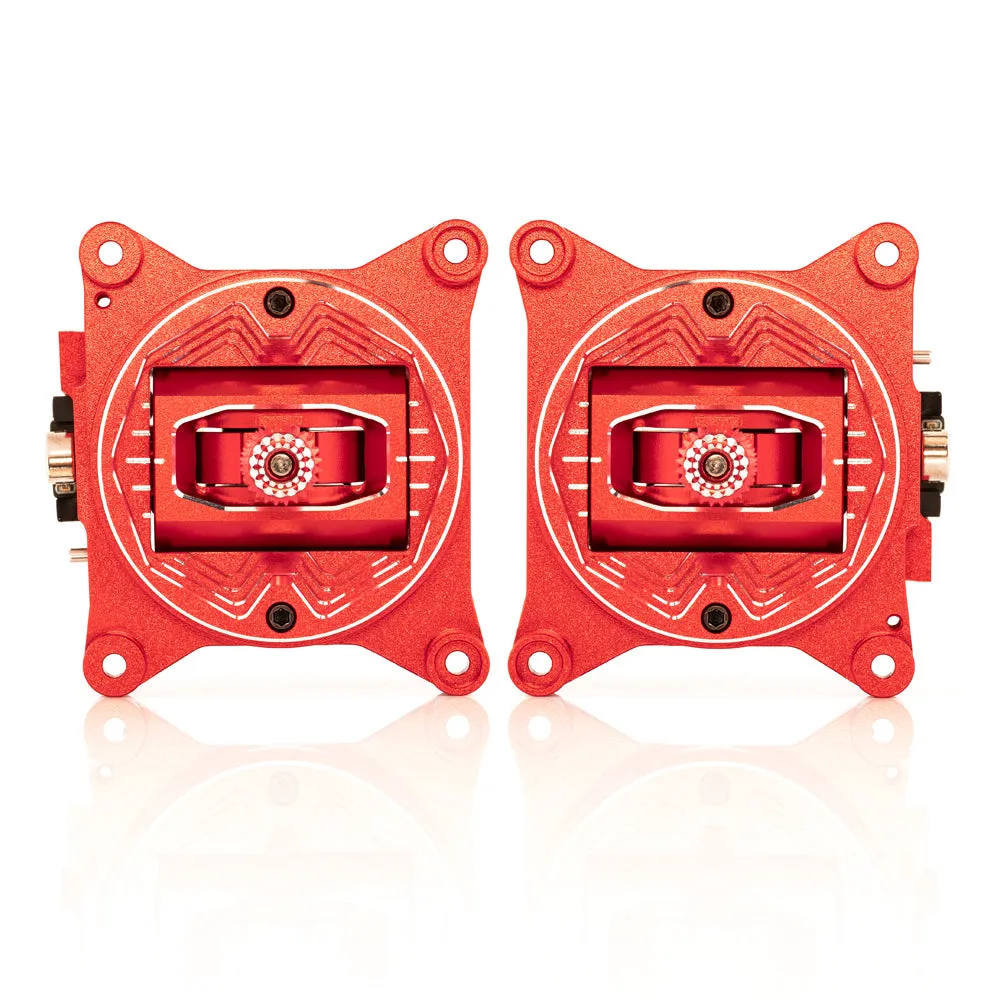

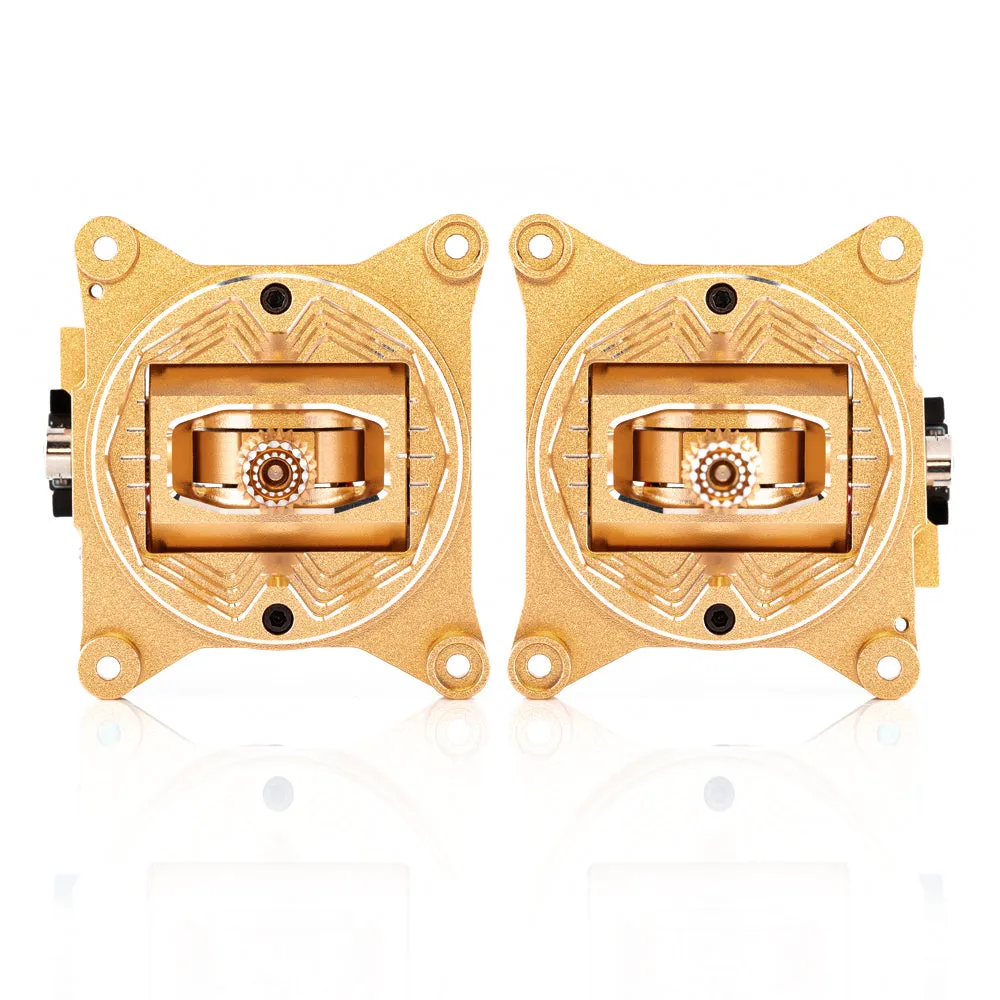

Name: AG01 MINI CNC Hall Gimbals Set New Colors
SKU: 2253336

Product Details ＋

Bring some extra vitality to your flight with the Sets in new colors! With the new color version, you'll stand out in style while enjoying the power and precision of the

Get ready for your & with the new colors AG01 Mini Gimbal!

Features

Made with CNC processed aviation grade aluminum.
as standard.
Non contact hall sensors for accurate control inputs and precise centering.
Quad precision bearings for unparalleled stick feel.
Adjustable vertical travel angle (Min. 38°, Max. 54°).
Custom designed for RadioMaster & .

Specifications

Name: AG01 Mini CNC Hall Gimbal

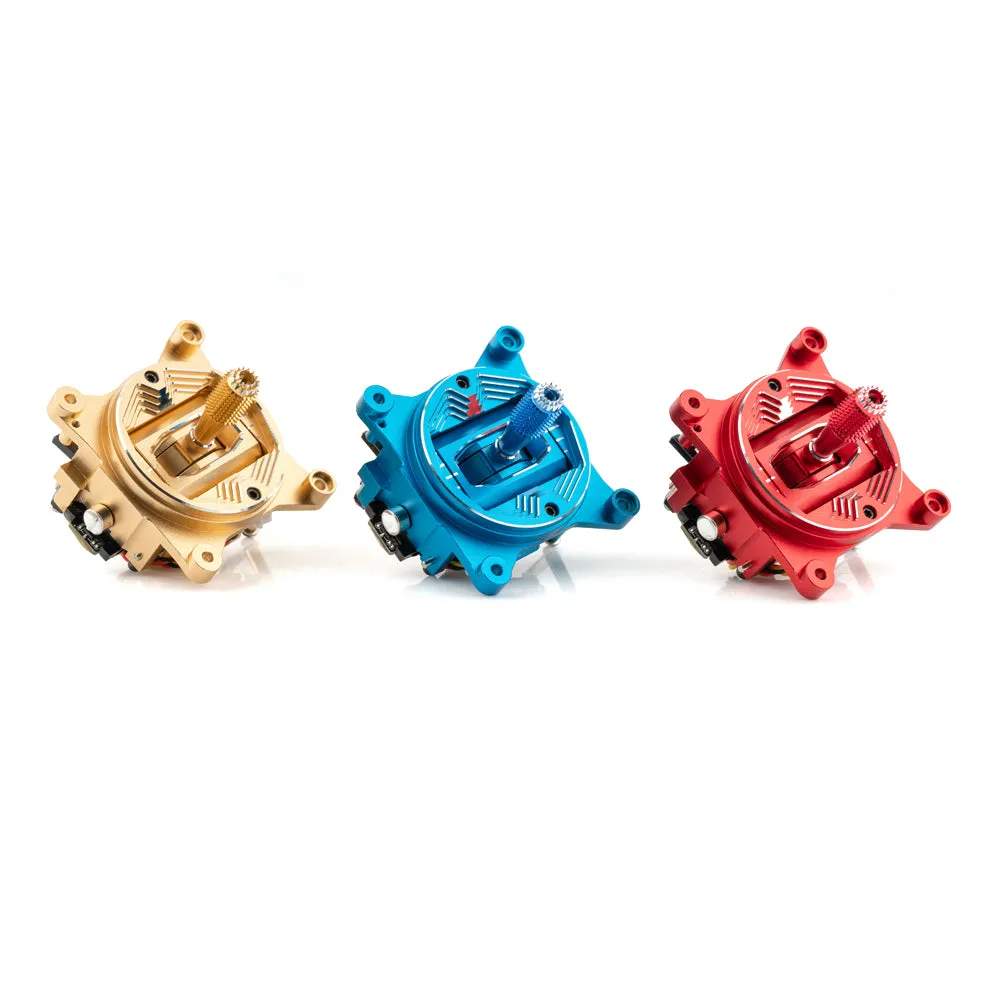

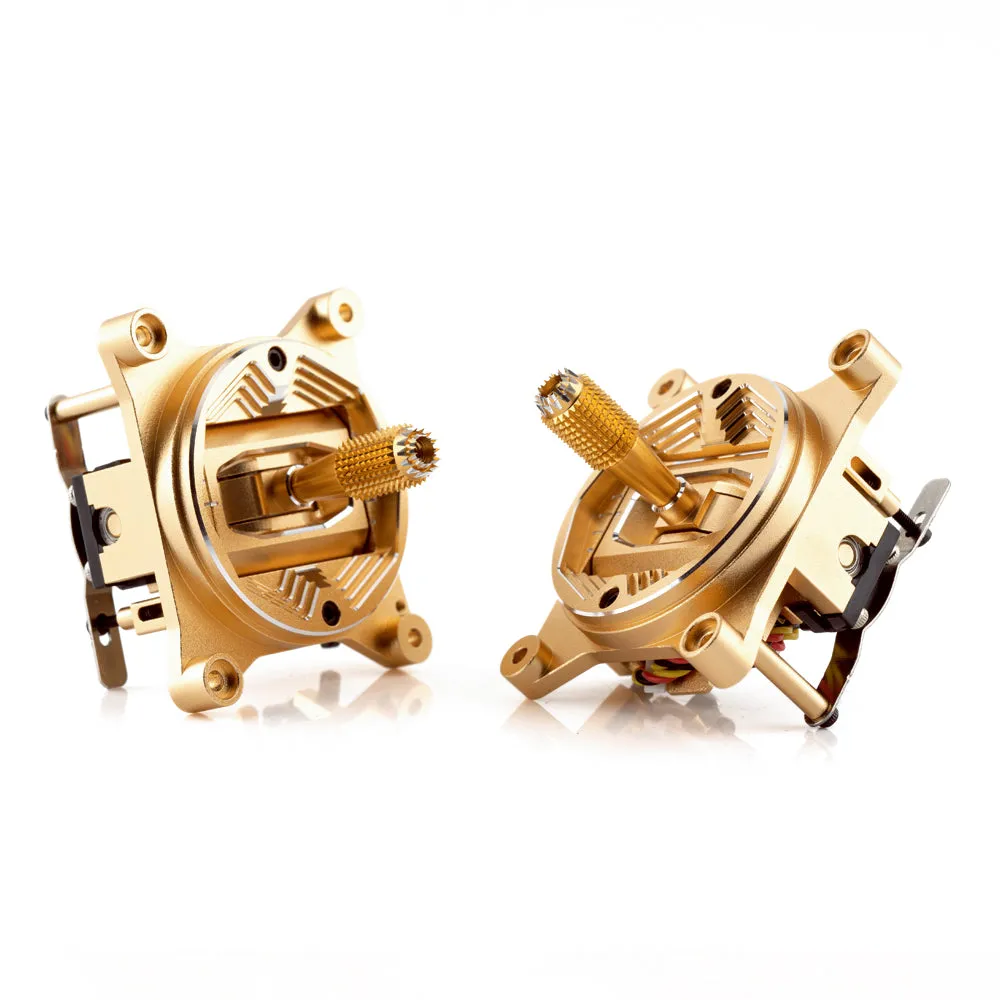

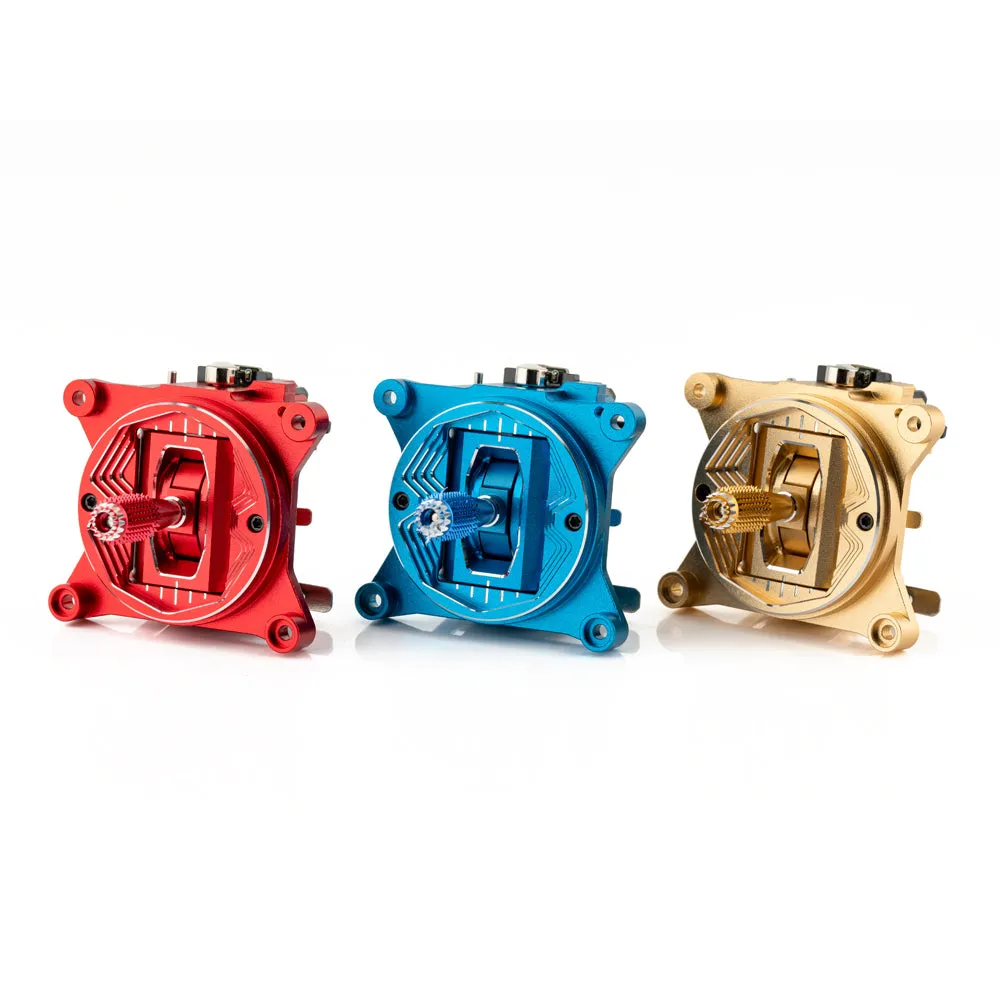

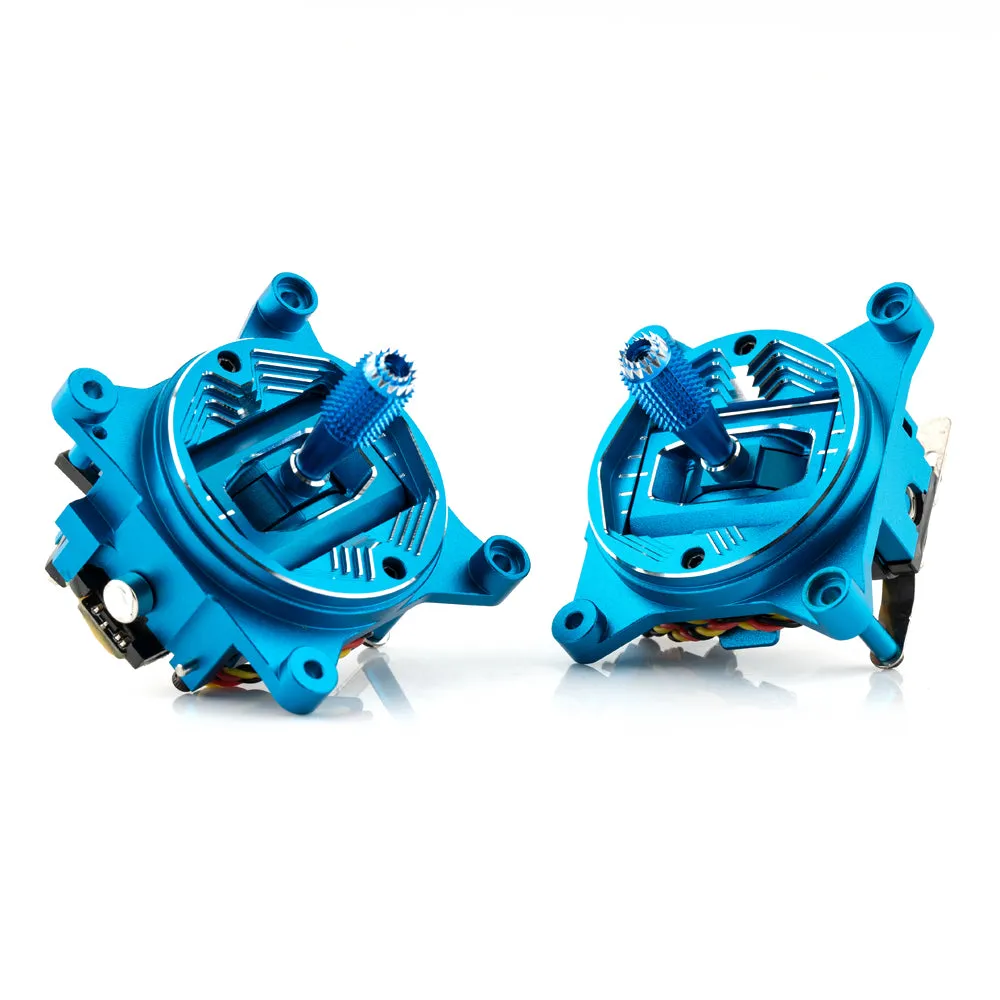

Colors: Red, Gold, Blue
Sensor type: Hall Sensor
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable vertical travel range: 38°—54°
Self-centering adjustment: Yes
Easy mode adjustment
Adjustable tension: Yes
Quad bearing: Yes
Temperature range: -20°C-85°C
Size: 49*42*48mm
Weight: 42g(±0.3g)

Installation for Zorro & TX12

The AG01 Mini gimbals are shipped as self-centering by default and compatible with the Zorro and TX12 Radios.

For Zorro

The Zorro radio is configured as Mode 1 or Mode 2 by the screws mounted in the rear case of the radio. Both gimbals should be installed in self-centering configuration (as default out of the box) in the Zorro radio. Once the radio is re-assembled the screws in the rear case of the Zorro will set the throttle gimbal.

For TX12

One gimbal must be set as throttle and one as self-centering before installation in the radio.
1. Use the included screw (see parts bag) to hold down the centering lever and set the gimbal as a throttle gimbal.
2. Adjust the throttle tension bar until the desired tension is achieved.
