Model: HB60-M1, HB60-M2

• 2-1/2 inch OD capacity
• Electric/hydraulic power
• Auto-stop
• 180 degree bends in one shot
• Foot pedal controls

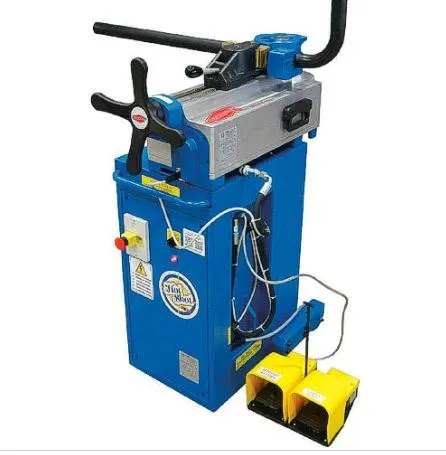

The Ercolina HB60 Hot Shot bender is a great choice for any fabricator needing to make consistent, repeatable bends. The HB60 features an easy to read degree wheel with a built in stop and is able to bend from 1/4 inch up to 2-1/2 inch OD tubing or 2 inch schedule 40 pipe.

Warranty:

1 year manufacturer's warranty

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch Sch 40
•Square Mild Steel Capacity (inches): 2 x .125
•Minimum OD (inches): 1/4
•Degrees Per Stroke: 180
•Max Bending Speed: 20 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 10-1/2
•Max Degree of Bend: 180
•Motor: 110v or 220v options
•Control Method: hand control
•Repeatability Control: yes
•Maximum OD (inches): 2-1/2
•Weight (pounds): 290
•Dimensions (LxWxH): 27 x 15 x 39 inches

Included:

• HB60 Super Bender
• Die sets sold separately. (Please see accessories tab)
