Description:
Color: White Green
$
84.14
$
64.72
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)

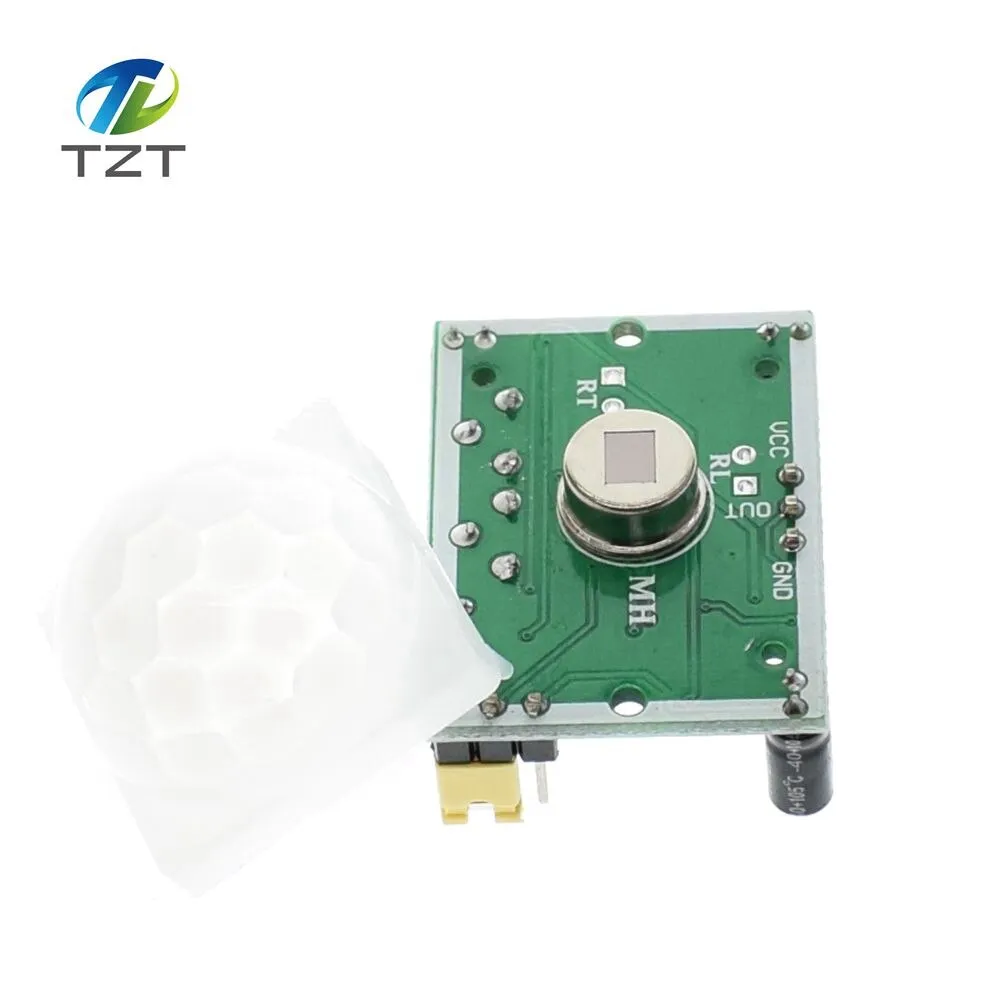

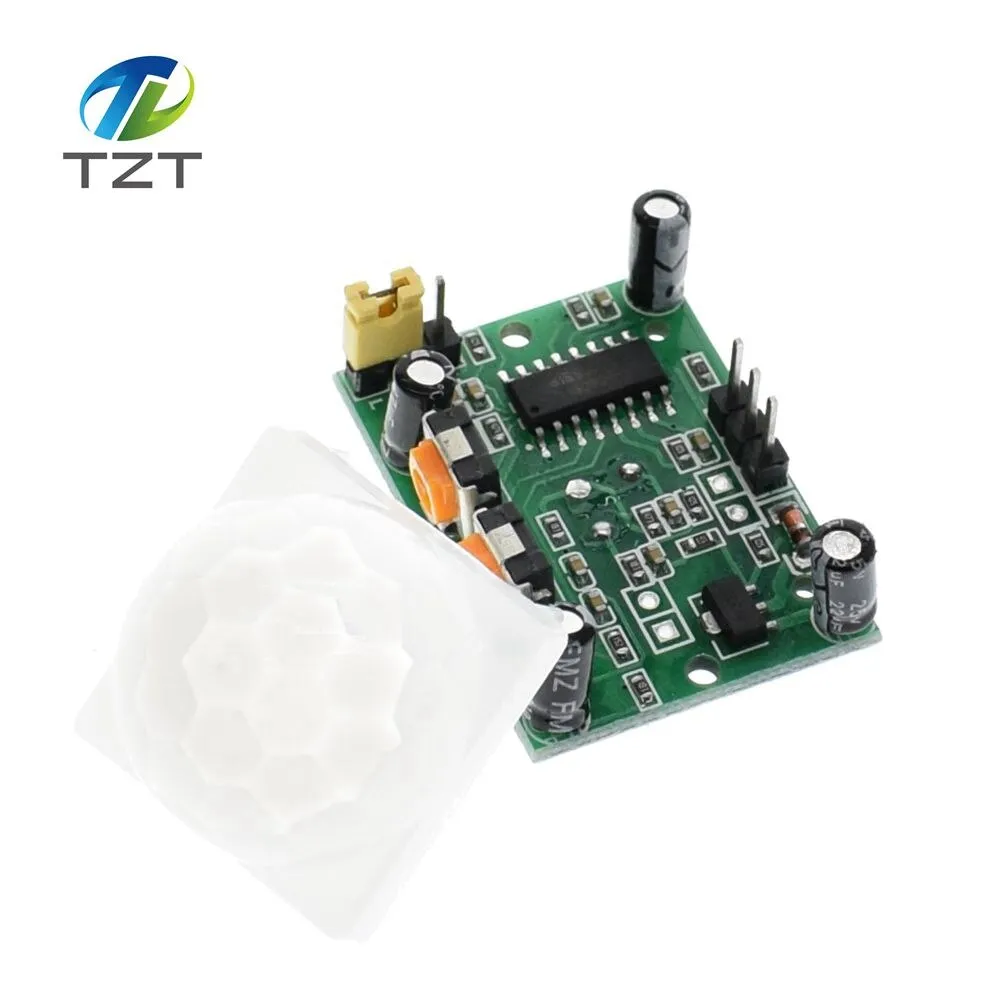

Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s -3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:

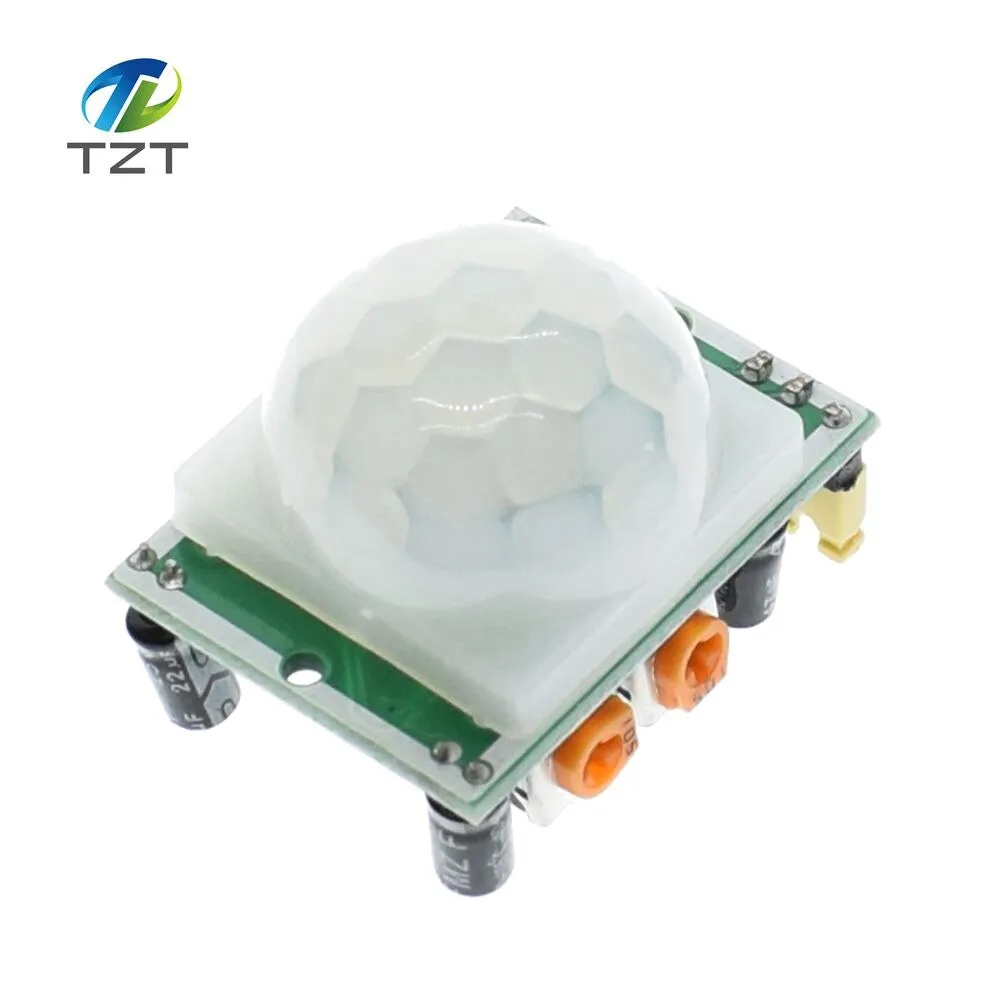

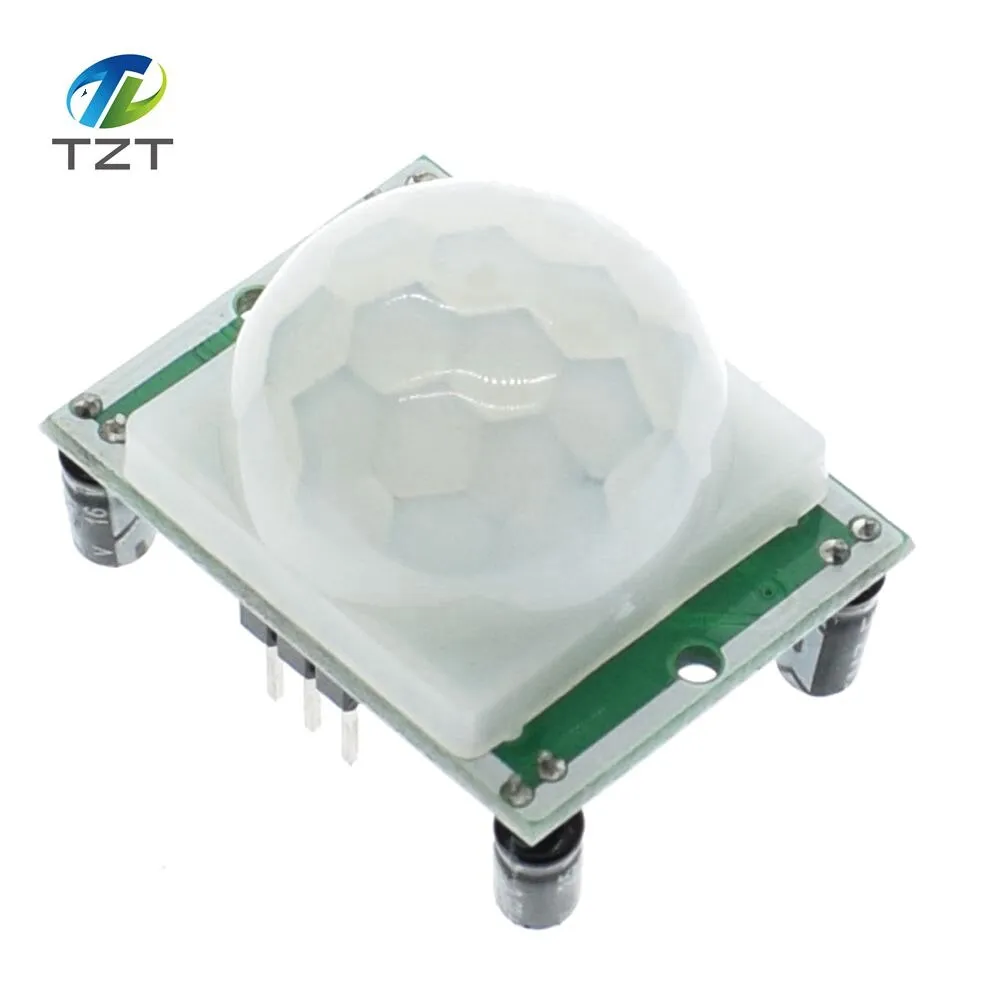

1pcs HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Module for Arduino for raspberry pi kits
