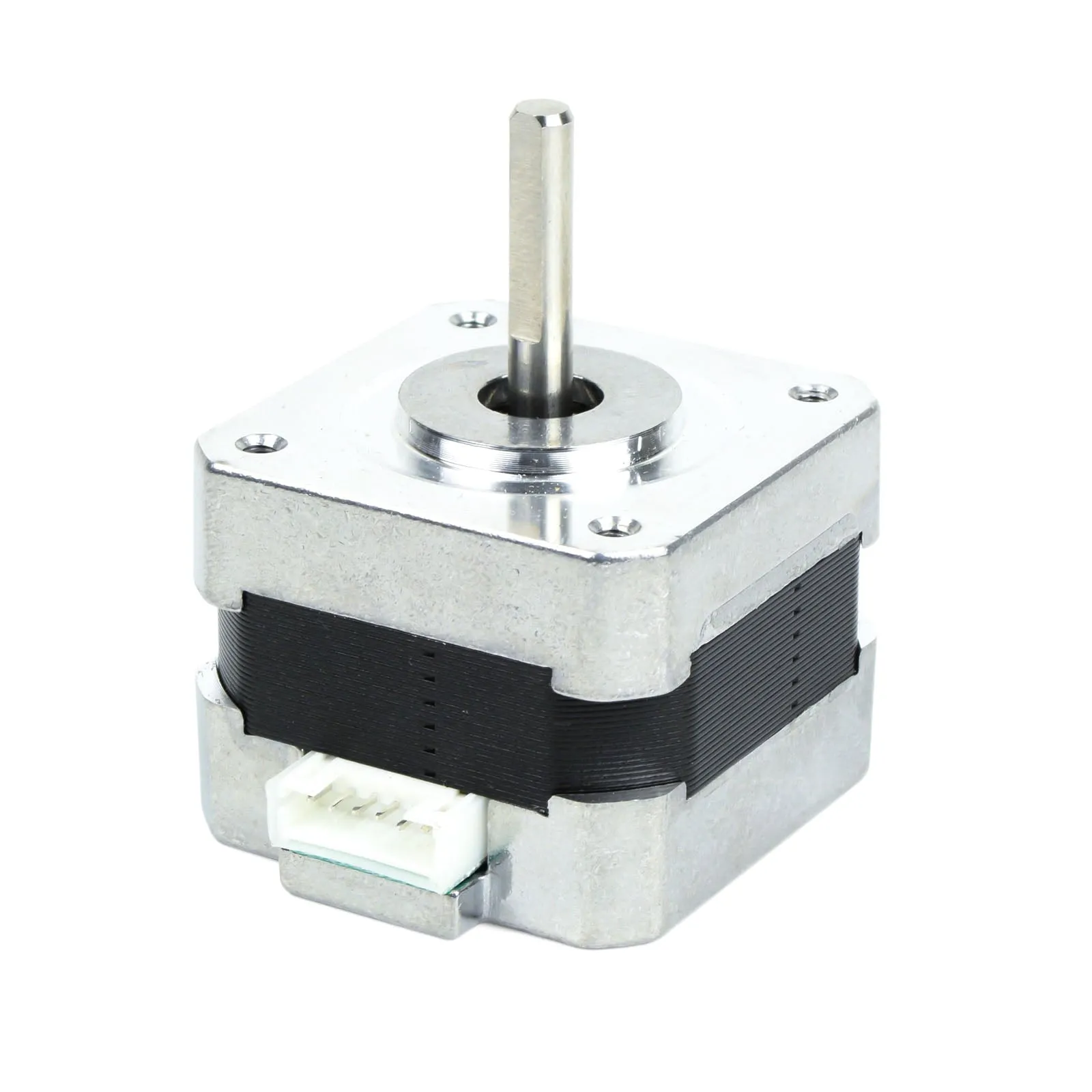

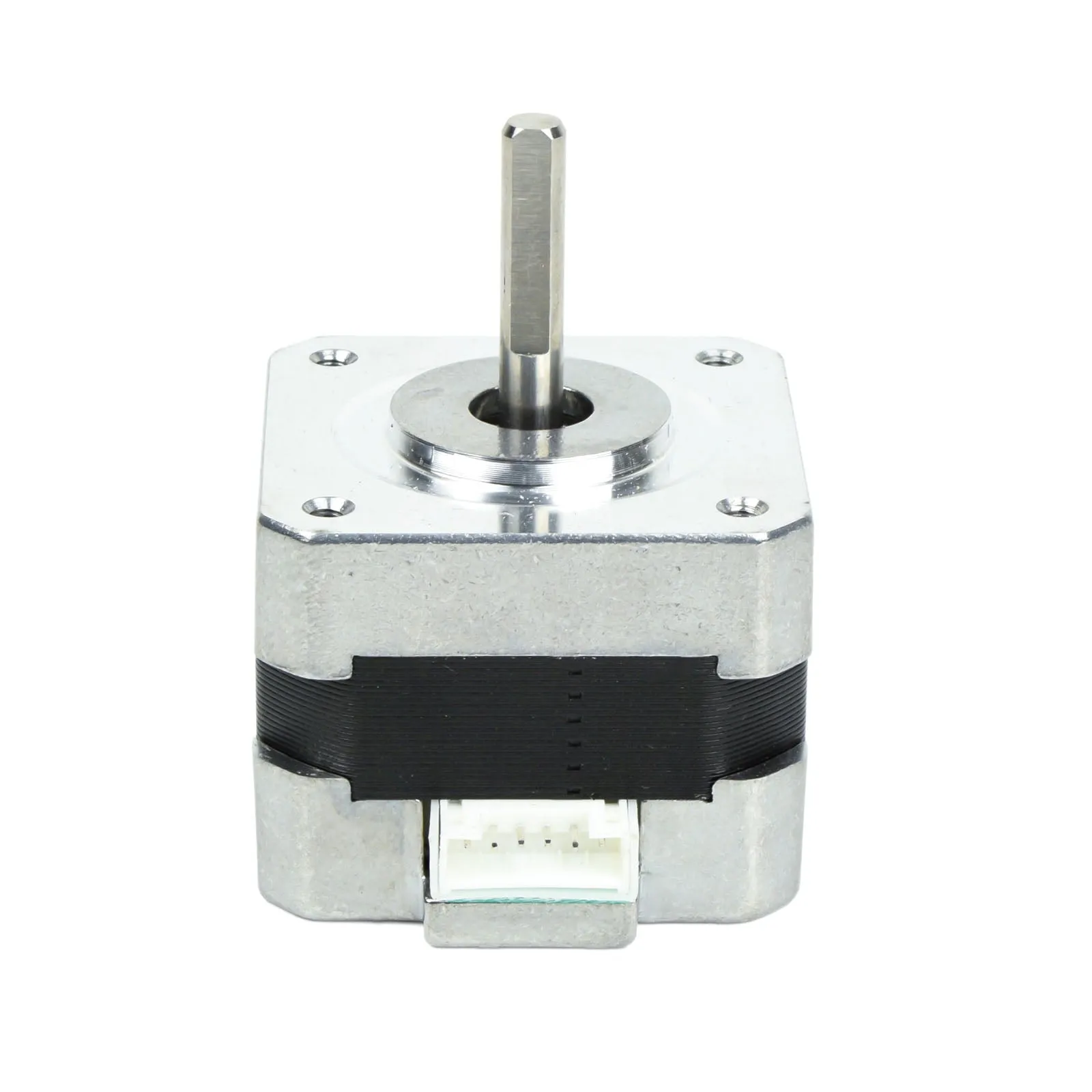

The HS1 KG stepping motor is a specific model of stepper motor known for its high performance, reliability, and precise control capabilities. While detailed specifications may vary depending on the manufacturer and specific model variant, here are some general characteristics and features commonly associated with the HS1 KG stepping motor:
1. High Torque: The HS1 KG stepping motor is known for its high torque output, allowing it to generate significant rotational force even at low speeds. This characteristic makes it suitable for applications requiring robust torque performance, such as industrial automation, robotics, and CNC machinery.
2. NEMA Frame Size: The HS1 KG stepping motor typically conforms to a specific NEMA (National Electrical Manufacturers Association) frame size, which defines the physical dimensions and mounting standards of the motor. Common NEMA frame sizes for stepper motors include NEMA 17, NEMA 23, NEMA 34, etc., with each size offering different torque and power ratings.
3. Bipolar Configuration: The HS1 KG stepping motor is often configured as a bipolar stepper motor, which requires a bidirectional current flow to drive the motor windings. Bipolar stepper motors offer precise control over position and rotation and are commonly used in applications where accuracy and reliability are essential.
4. Step Angle: The step angle of the HS1 KG stepping motor refers to the angle of rotation produced by each step of the motor. Typical step angles for stepper motors range from 0.9 degrees to 1.8 degrees per step, with smaller step angles providing finer resolution and smoother motion control.
5. Holding Torque: The HS1 KG stepping motor is capable of producing a holding torque, which is the maximum torque that the motor can exert while stationary to maintain position. Holding torque is a critical parameter for applications requiring the motor to hold a load or resist external forces.
6. Voltage and Current Ratings: The HS1 KG stepping motor has specific voltage and current ratings that determine its electrical requirements and performance characteristics. These ratings may vary depending on the specific model variant and application requirements.
7. Compatibility: The HS1 KG stepping motor is compatible with a wide range of driver electronics and motion control systems commonly used in industrial automation, robotics, CNC machinery, and other applications. It can be easily integrated into existing systems and controlled using various motion control interfaces, such as pulse and direction signals or serial communication protocols.
Overall, the HS1 KG stepping motor is a versatile and reliable choice for applications requiring precise motion control, high torque output, and robust performance. Whether you're building a CNC router, a robotic arm, or an automated manufacturing system, the HS1 KG stepping motor offers the performance and flexibility you need to meet your application requirements.
