Product Details
＋

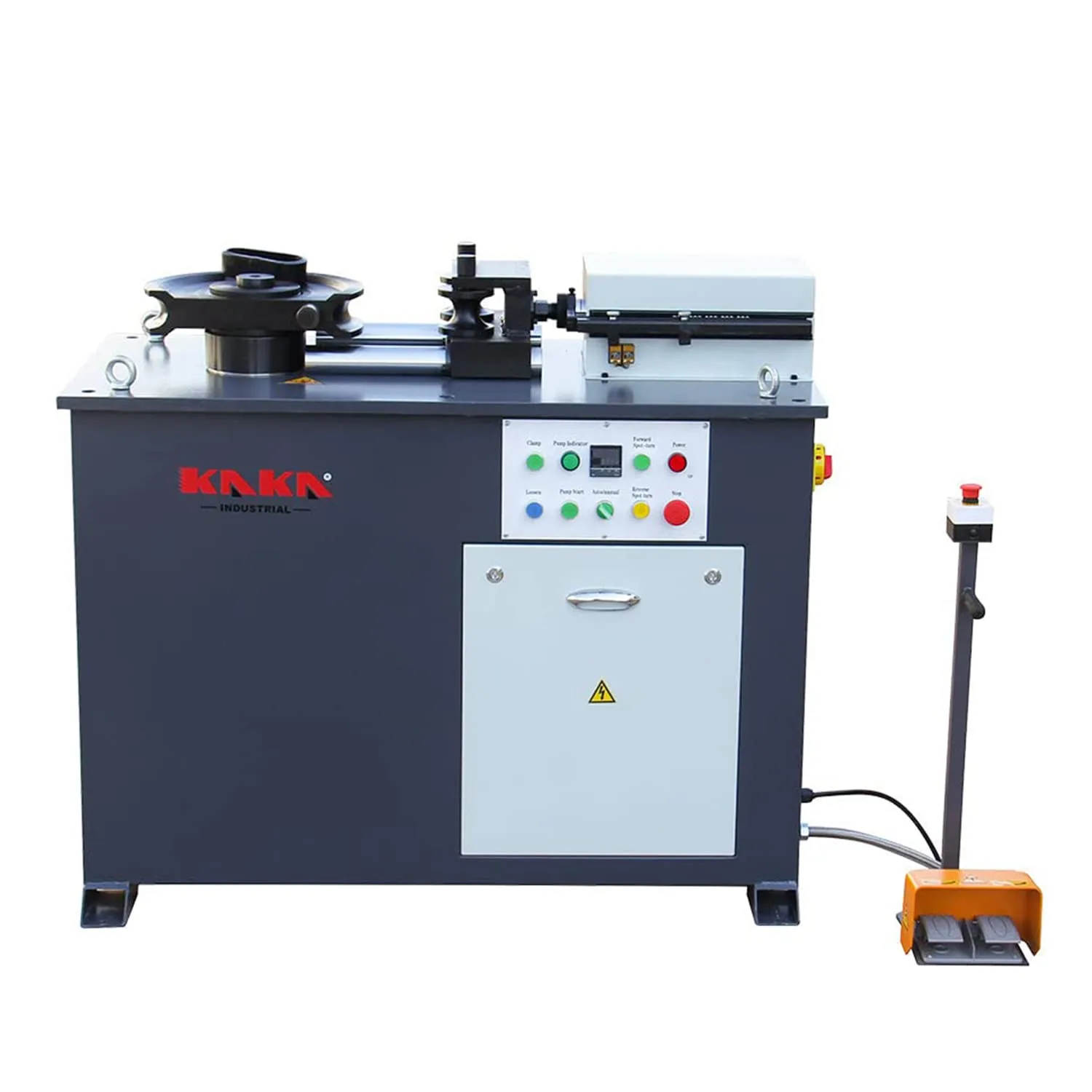

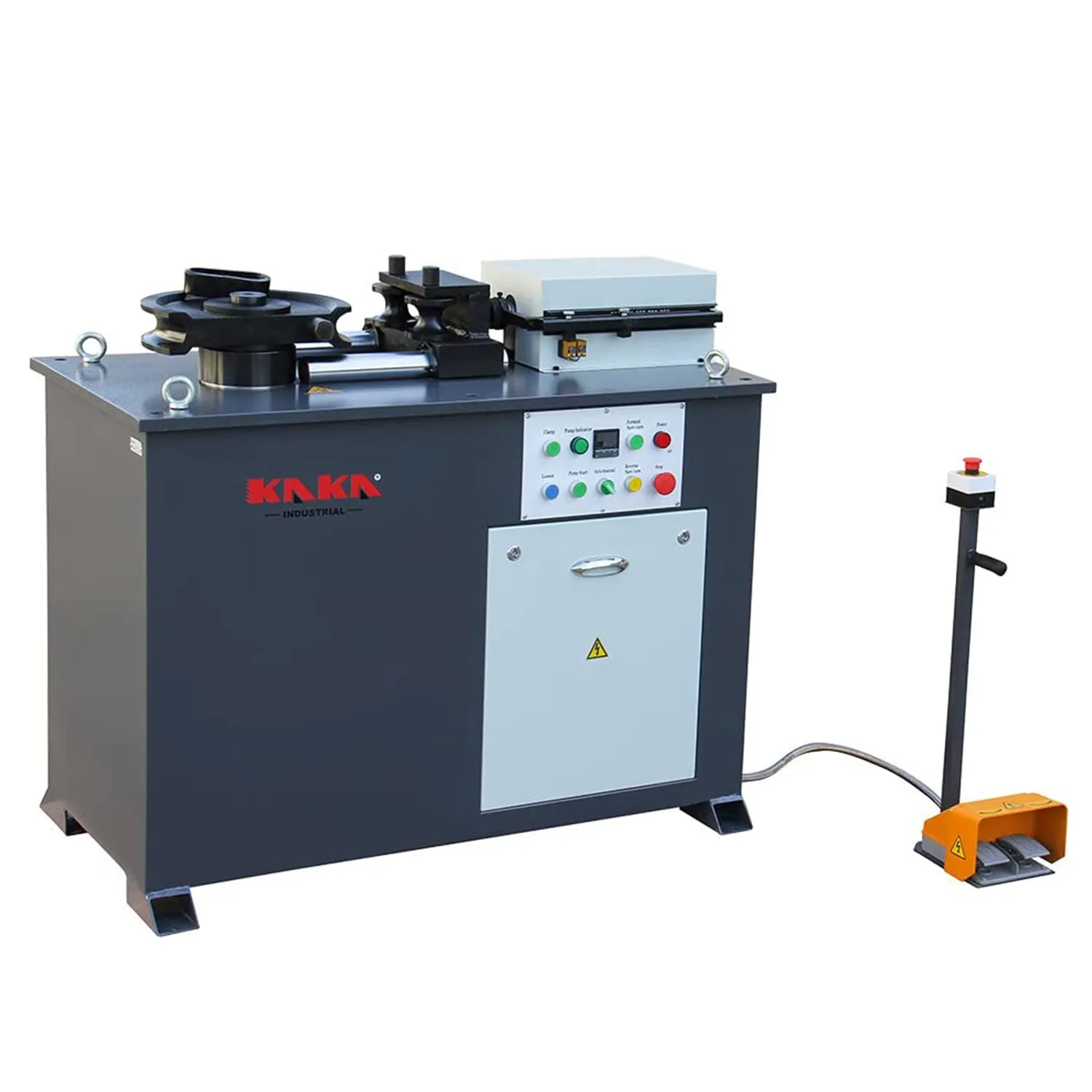

KANG Industrial JTB-50, Hydraulic Tube Bender
Hydraulic Tube & Pipe Bender
Features
Runs on 415V 3PH motor
Hydraulic clamping, moveable foot pedal control

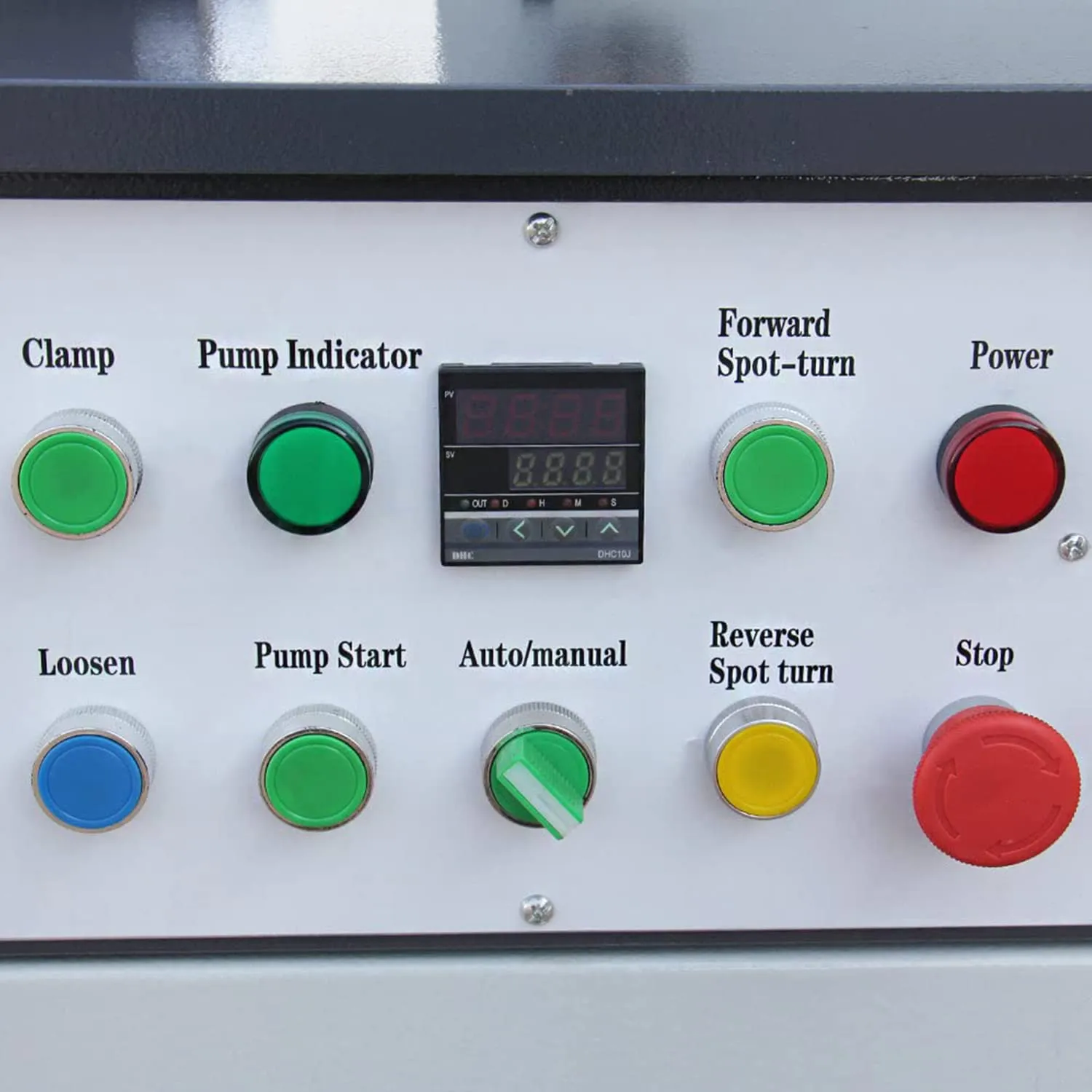

PLC control, easy to set the bending angle
Heavy-duty structure for industrial use

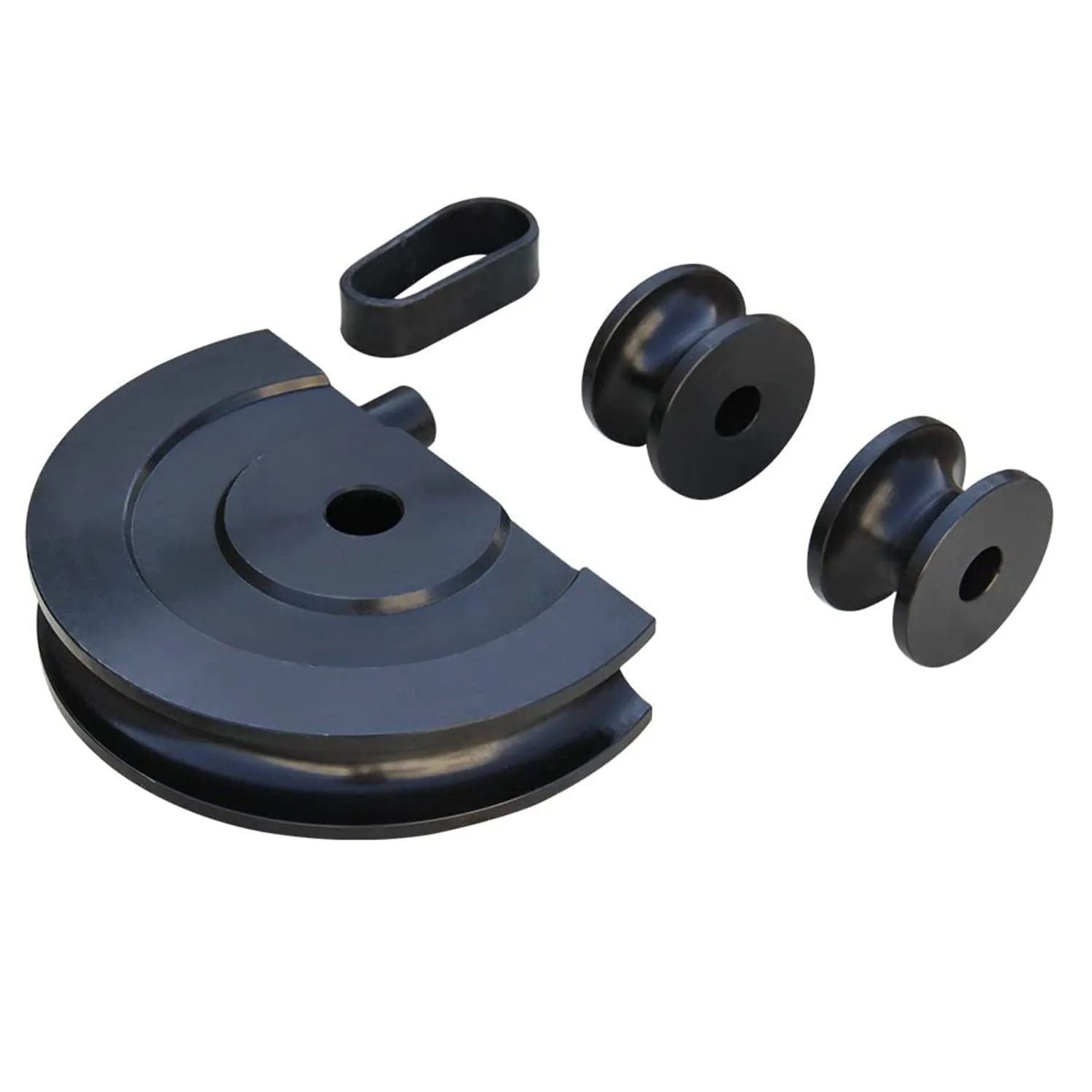

Standard with 4 sets of tooling of 25NB, 32NB, 40NB & 40mm square dies
Specifications
| Item No. | 191063 |
| Model | JTB-50 |
| Round tube | Max. 51mm, Min. 16 mm |
| Stainless Steel Pipe | Max. 38mm, Min. 16 mm (special dies needed) |
| Square Pipe | Max. 50*50mm, Min. 16x16 mm |
| Bending Angle | Max. 180° |
| Bending Motor | 2.2 kW, 1400 r/min |
| Clamping Motor | 1.1 kW, 1400 r/min |
| Packing size | 145x69x117 cm |
| N.W./G.W. | 550/620 kg |
